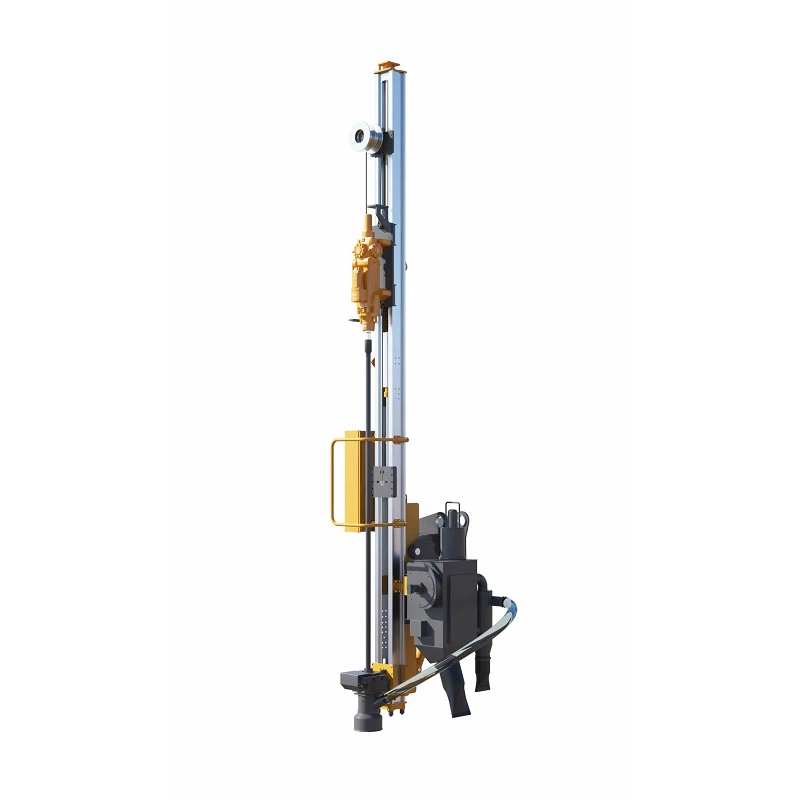

Hydraulic Hard Rock Drill Machine
Hydraulic Hard Rock Drill Machine Product Description:
Our T1 series hydraulic excavation and modification drilling rigs are the perfect solution for all kinds of stone projects. This drilling rig is designed to be installed on an excavator, and it comes equipped with an optional top-drive hydraulic rock drill that provides high-efficiency drilling capabilities.
The T1 series drilling rig features drilling automation, stable performance, and low comprehensive costs, making it an ideal option for any project. Additionally, we offer other optional products such as the T2 and T6 models to suit your specific needs.
Whether you are blast drilling or undertaking other excavation and modification activities, our hydraulic hard rock drill machine is a reliable and sturdy tool that delivers superior performance. It is easy to operate, and it can handle the toughest drilling tasks with ease.
Our team of professionals has worked tirelessly to develop and manufacture this innovative drilling rig to ensure that it can execute any drilling projects with precision and accuracy.
Invest in our hydraulic hard rock drill machine today, and you'll be investing in a reliable, high-performance drilling tool that delivers efficient results every time.
| Impact power: | 22kW | Impact frequency: | 38Hz |
| Rotary torque: | 1522Nm | Impact pressure: | 200bar |
| Rotary speed: | 0-140rpm | Impact flow rate: | 120L/min |
| Rotary pressure: | 140bar | Drilling diameter range: | 76-115mm |
| Rotary flow rate: | 75L/min | Parameters of propulsion beam and thruster | |
| Weight: | 230kg | Length of drill pipe: | 3.66m |
| Total length of propulsion beam: | 7.2m | Number of drill pipes: | 1pc |
| Pushing force: | 20kN | Changeover method: | None |
| Lifting force: | 20kN | Drilling depth: | 3.6m |
| Rock drill stroke: | 4.2m | Displacement: | 3.5³/min |
| Screw air compressor parameters | Excavator requirements: | ≥20t | |
| Discharge pressure: | 5-8bar |
